Extended Pin Double Pitch Conveyor Chain With Attachments

Ask Lasest Price
Brand Name :	UCER
Model Number :	A B series
Certification :	ISO9001
Price :	$2.00 - $50.00/ Meter
Payment Terms :	L/C, T/T, D/P, CAD
Supply Ability :	10000 Meters per Month
Delivery Time :	45 work days

Add to Cart

Product Details
Company Profile

Extended Pin Double Pitch Conveyor Chain With Attachments

Extended Pin Double Pitch Conveyor Chain Heavy Duty Conveyor Chains

Quick Details:

Finish:Black, Plain

Place of Origin:Zhejiang, China

Brand Name:UCER

Model Number:A B series

Structure:Roller Chain

Function:Conveyor Chain

Standard or Nonstandard:Standard

roller chain name:short pitch alloy steel conveyor roller chain with attchments

conveyor chain type:chain with attchments

OEM service:accept

heat treatment:all the chain parts undergo heat treatment

Color:black & gray

delivery time:on time

production maker:China manufacturer

material:alloy steel or stainless steel

size&capacity:pls reference to the form

Supply Ability:10000 Meter/Meters per Month

Specification

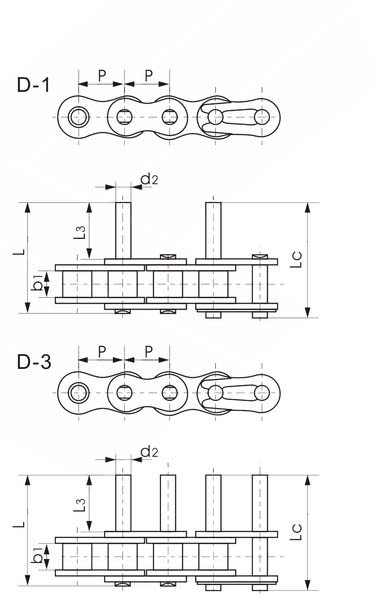

DIN/ISO Chain No.	ANSI Chain No.	P	b1	d2	L3	L	Lc
DIN/ISO Chain No.	ANSI Chain No.	mm
06C	35	9.525	4.77	3.58	9.5	20.8	21.6
08A	40	12.7	7.85	3.96	9.5	25.1	26.2
10A	52	15.875	9.4	5.08	11.9	31.3	33.1
12A	60	19.05	12.57	5.94	14.3	38.6	40.6
16A	80	25.4	15.75	7.92	19.1	50.3	53.3
20A	100	31.75	18.9	9.53	23.8	61.8	66.1
24A	120	38.1	25.22	11.1	28.6	76.4	80.4
28A	140	44.45	25.22	12.7	33.3	84.8	89.4
32A	160	50.8	31.55	14.27	38.1	99.6	104.4
08B		12.7	7.75	4.45	9.5	25.1	26.6
10B		15.875	9.65	5.08	11.9	30.1	31.5
12B		19.05	11.68	5.72	14.3	35.4	37.1
16B		25.4	17.02	8.28	19.1	53	54.3
20B		31.75	19.56	10.19	41	79.9	83.6
24B		38.1	25.4	14.63	50.7	101.4	105.8
28B		44.45	30.99	15.9	61.9	124	128.4
32B		50.8	30.99	17.81	64.8	126.8	131.8

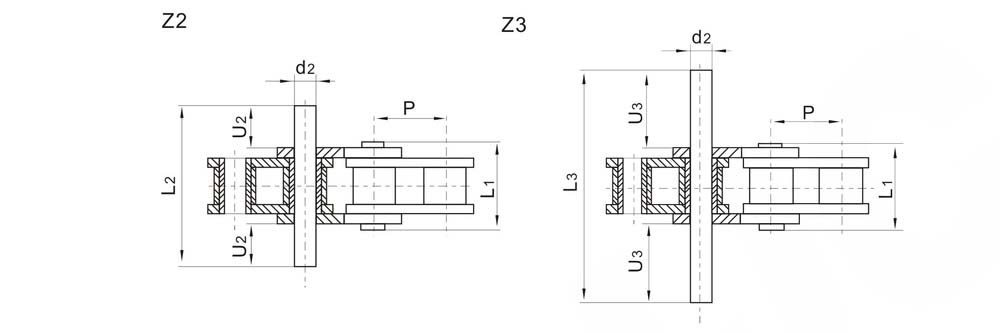

DIN ISO Chain No.	Pitch		d1 min mm	L1 min mm	L2 max mm	L3 max mm	U2 max mm	U3 max mm
DIN ISO Chain No.	mm	inch
05B-1	8		2.31	8.6	14.3	19.9	3.9	6.7
06B-1	9.525	3/8"	3.28	13.5	23.8	34	6.6	11.7
08B-1	12.7	1/2"	4.45	17	31	44	8.1	15.2
10B-1	15.875	5/8"	5.08	19.6	36.2	52.8	9.8	18.1
12B-1	19.05	3/4"	5.72	22.7	42.2	61.7	11.4	21.1
16B-1	25.4	1"	8.28	36.1	68	99.9	18	34
20B-1	31.75	1"1/4	10.19	43.2	79	116	20.6	39.11
24B-1	38.1	1"1/2	14.63	53.4	101	150	26.2	50.7

DIN ISO Chain No.	Pitch		d1 min mm	L1 min mm	L2 max mm	L3 max mm	U2 max mm	U3 max mm
DIN ISO Chain No.	mm	inch
05B-1	8		2.31	8.6	14.3	19.9	7.1	12.7
06B-1	9.525	3/8"	3.28	13.5	23.8	34	12.2	22.4
08B-1	12.7	1/2"	4.45	17	31	44	15.5	29.4
10B-1	15.875	5/8"	5.08	19.6	36.2	52.8	18.5	35.1
12B-1	19.05	3/4"	5.72	22.7	42.2	61.7	21.5	41
16B-1	25.4	1"	8.28	36.1	68	99.9	34.5	66.4
20B-1	31.75	1"1/4	10.19	43.2	79	116	39.4	76.4
24B-1	38.1	1"1/2	14.63	53.4	101	150	50.4	99.4

DIN/ISO Chain No.	ANSI Chain No.	P	b1	d2	L3	L	Lc
DIN/ISO Chain No.	ANSI Chain No.	mm
06C	35	9.525	4.77	3.58	9.5	20.8	21.6
08A	40	12.7	7.85	3.96	9.5	25.1	26.2
10A	52	15.875	9.4	5.08	11.9	31.3	33.1
12A	60	19.05	12.57	5.94	14.3	38.6	40.6
16A	80	25.4	15.75	7.92	19.1	50.3	53.3
20A	100	31.75	18.9	9.53	23.8	61.8	66.1
24A	120	38.1	25.22	11.1	28.6	76.4	80.4
28A	140	44.45	25.22	12.7	33.3	84.8	89.4
32A	160	50.8	31.55	14.27	38.1	99.6	104.4
08B		12.7	7.75	4.45	9.5	25.1	26.6
10B		15.875	9.65	5.08	11.9	30.1	31.5
12B		19.05	11.68	5.72	14.3	35.4	37.1
16B		25.4	17.02	8.28	19.1	53	54.3

Packing Delivery Shipping

Packaging Details:

Packing: a conveyor chain with attachment + a poly bag + individual box + wooden case

Port: shanghai ,ningbo

Delivery Details:

Usually, we pack conveyer chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.

Recommend Products

Our Service

1. UCER chain supply OEM/ODM service.

2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
