C2060 C2080 Double Pitch Conveyor Chains With Extended Pins

Ask Lasest Price
Brand Name :	UCER
Model Number :	C2060 C2080
Certification :	ISO9001
Price :	$2.00 - $50.00/ Meter
Payment Terms :	L/C, T/T, D/P, CAD
Supply Ability :	10000 Meters per Month
Delivery Time :	45 work days

Add to Cart

Product Details
Company Profile

C2060 C2080 Double Pitch Conveyor Chains With Extended Pins

Double Pitch Conveyor Chains With Extended Pins Heavy Duty Conveyor Chains

Quick Details:

Finish:Black, Plain

Place of Origin:Zhejiang, China

Brand Name:UCER

Model Number:C2052

Structure:Roller Chain

Function:Conveyor Chain

Standard or Nonstandard:Nonstandard

roller chain name:doube pitch conveyor chains and extended pins

conveyor chain type:chain with extended pin

OEM service:accept

Color:black & gray

delivery time:on time

production maker:China manufacturer

material:alloy steel or stainless steel

marerial:40Cr C45

heat treatment:all the chain parts with heat treatment

size&capacity:pls reference to the form

Supply Ability:10000 Meter/Meters per Month

Specification

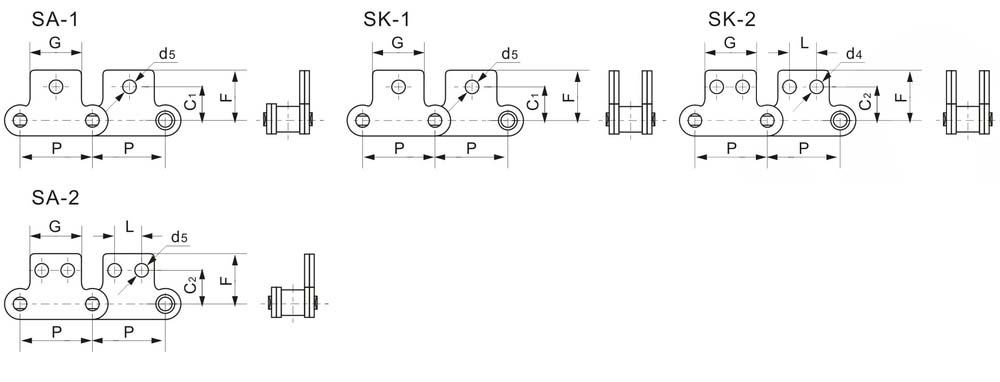

DIN ISO Chain No.	ANSI Chain No.	Pich		G	L	C1	C2	F	d4	d5
DIN ISO Chain No.	ANSI Chain No.	mm	inch	mm
C208A	C2040	25.4	1"	19.1	9.5	11.1	13.5	20.5	3.4	5.5
C210A	C2050	31.75	1"1/4	23.8	11.9	14.3	15.9	25	5.5	6.6
C212A	C2060	38.1	1"1/2	28.6	14.3	17.5	19.1	32.9	5.5	9.2
C216A	C2080	50.8	2"	38.1	19.1	22.2	25.4	43.5	6.6	11
C220A	C2100	63.5	2"1/2	47.6	23.8	28.6	31.8	50.4	8.4	13

DIN ISO Chain No.	ANSI Chain No.	Pich		G	L	F	W	h	d4
DIN ISO Chain No.	ANSI Chain No.	mm	inch	mm
C208A	C2040	25.4	1"	19.1	9.5	25.4	39.6	9.1	3.4
C210A	C2050	31.75	1"1/4	23.8	11.9	31.8	49	11.1	5.5
C212A	C2060	38.1	1"1/2	28.6	14.3	42.8	67.8	14.7	5.5
C216A	C2080	50.8	2"	38.1	19.1	55.6	87.8	19.1	6.8

DIN ISO Chain No.	ANSI Chain No.	Pich		G	L	C1	C2	F	d4	d5
DIN ISO Chain No.	ANSI Chain No.	mm	inch	mm
C208A	C2040	25.4	1"	19.1	9.5	11.1	13.5	20.5	3.4	5.5
C210A	C2050	31.75	1"1/4	23.8	11.9	14.3	15.9	25	5.5	6.6
C212A	C2060	38.1	1"1/2	28.6	14.3	17.5	19.1	32.9	5.5	9.2
C216A	C2080	50.8	2"	38.1	19.1	22.2	25.4	43.5	6.6	11

DIN ISO Chain No.	ANSI Chain No.	Pich		b1	d2	L3	L	Lc
DIN ISO Chain No.	ANSI Chain No.	mm	inch	mm
C208A	C2040	25.4	1"	7.85	3.96	9.5	25.1	26.2
C210A	C2050	31.75	1"1/4	9.4	5.08	11.9	31.3	33.1
C212A	C2060	38.1	1"1/2	12.57	5.94	14.3	38.6	40.6
C216A	C2080	50.8	2"	15.75	7.92	19.1	50.3	53.3
C216AH	C2080H						53.5	55
C216AHL	C2082H						53.5	55
C220A	C2100	63.5	2"1/2	18.9	9.53	23.8	61.8	66.1
C220AL	C2102						61.8	66.1
C220AH	C2100H						65	68.3
C220AHL	C2102H						65	68.3
C224AH	C2120H	76.2	3"	25.22	11.1	28.6	79.6	83.6
C224AHL	C2122H	76.2	3"	25.22	11.1	28.6	79.6	83.6
C232AH	C2160H	101.6	4"	31.75	14.27	38.1	103	107.8
C232AHL	C2162H	101.6	4"	31.75	14.27	38.1	103	107.8

DIN ISO Chain No.	ANSI Chain No.	Pich		b1	d2	L3	L	Lc
DIN ISO Chain No.	ANSI Chain No.	mm	inch	mm
C208A	C2040	25.4	1"	7.85	3.96	4.1	16.6	18.8
C208AL	C2042	25.4	1"	7.85	3.96	4.1	16.6	18.8
C210A	C2050	31.75	1"1/4	9.4	5.08	5.1	20.7	23.3
C210AL	C2052	31.75	1"1/4	9.4	5.08	5.1	20.7	23.3
C212A	C2060	38.1	1"1/2	12.57	5.94	6.1	25.9	28.3
C212AL	C2060	38.1	1"1/2	12.57	5.94	6.1	25.9	28.3
C212AH	C2060H	38.1	1"1/2	12.57	5.94	6.1	29.2	31.6
C212AHL	C2062H	38.1	1"1/2	12.57	5.94	6.1	29.2	31.6
C216A	C2080	50.8	2"	15.75	7.92	8.1	32.7	36.5
C216AL	C2082	50.8	2"	15.75	7.92	8.1	32.7	36.5
C216AH	C2080H	50.8	2"1/2	15.75	7.92	8.1	36.2	39.4
C216AHL	C2082H	50.8	2"1/2	15.75	7.92	8.1	36.2	39.4
C220A	C2100	63.5	2"1/2	18.9	9.53	10.1	40.4	44.7
C220AL	C2102	63.5	2"1/2	18.9	9.53	10.1	40.4	44.7
C220AH	C2100H	63.5	2"1/2	18.9	9.53	10.1	43.6	46.9
C220AHL	C2102H	63.5	2"1/2	18.9	9.53	10.1	43.6	46.9

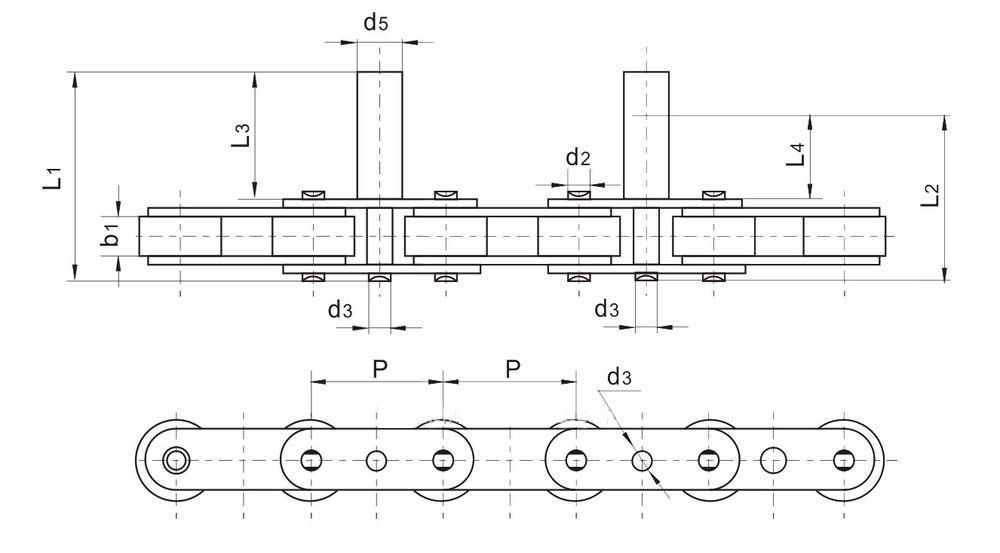

DIN ISO Chain No.	Pich		b1	d2	d3	d5	L3
DIN ISO Chain No.	mm	inch	mm
C2052	31.75	1"1/4	9.4	5.08	6	11	30
C2060H	38.1	1"1/2	12.57	5.94	7.92	12.7	41.91

Packing Delivery Shipping

Packaging Details:

Packing: a conveyor chain with extended pin + a poly bag + individual box + a wooden case

Port: shanghai ,ningbo

Delivery Details:

Usually, we pack conveyer chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.
