OEM ODM HP Hollow Pin Heavy Duty Conveyor Chain Stainless Steel

Ask Lasest Price
Brand Name :	UCER
Model Number :	HP series
Certification :	ISO9001
Price :	$2.00 - $50.00/ Meter
Payment Terms :	L/C, T/T, D/P, CAD
Supply Ability :	10000 Meters per Month
Delivery Time :	45 work days

Add to Cart

Product Details
Company Profile

OEM ODM HP Hollow Pin Heavy Duty Conveyor Chain Stainless Steel

HP China Manufacturer Conveyor Chain Stainless Steel Hollow Pin Chain Heavy Duty Conveyor Chains

Quick Details:

Place of Origin:Zhejiang, China

Brand Name:UCER

Model Number:HP series

Structure:Roller Chain

Function:Conveyor Chain

Material:ALLOY

Standard or Nonstandard:Standard

roller chain name:Hollow Pin Chain

conveyor chain type:hollow shaft

OEM service:accept

heat treatment:all the chain parts undergo heat treatment

Color:black & gray

pitch:12.70 - 25.40 mm

hollow pin diameter:6.38 - 11.0 mm

production maker:China manufacturer

material:alloy steel or stainless steel

Supply Ability:10000 Meter/Meters per Month

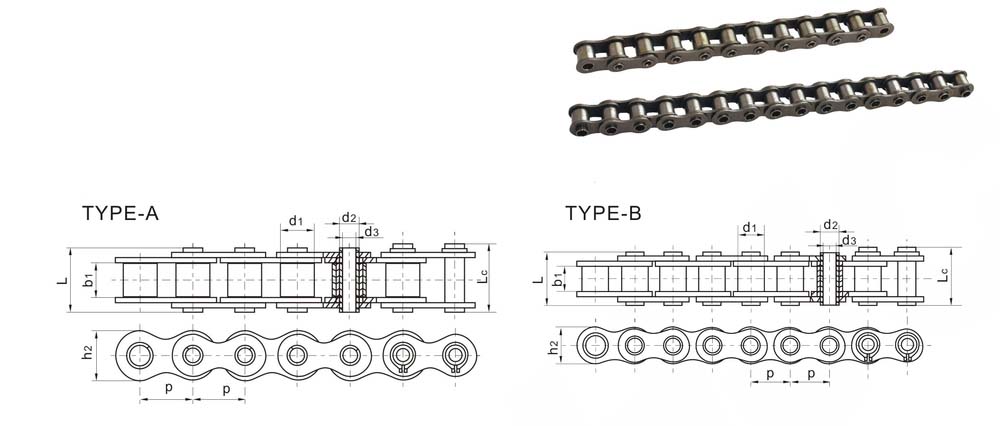

Specification

DIN ISO Chain No.	Pitch		b1 min mm	d1 max mm	d2 max mm		L max mm	Lc max mm	h2 max mm	U.T.S KN	A.T.S KN	q ≈ kg/m	Type
DIN ISO Chain No.	mm	inch
08B HP	12.7	1/2"	7.75	8.51	6.38	4.5	16.8	18.1	11.8	13.5	14.6	0.6	A
10B HP	15.88	5/8"	9.65	10.16	7.03	5	18.6	20.8	14.3	14.5	15.6	0.83
12B HP	19.05	3/4"	11.68	12.07	8.1	5.75	24	23.6	16.5	18.5	19.5	1.05	A
16B HP	25.4	1"	17.02	15.88	11.1	8.1	36	38	21	50	60.3	2.4	A
*40HP	12.7	1/2"	7.85	7.95	5.63	4	16.5	17.6	12	11	12.2	0.54	B
*50HP	15.88	5/8"	9.4	10.16	7.03	5.3	20.7	21.9	15.09	20	22.1	0.91	B
*60HP	19.05	3/4"	12.7	11.91	8.31	6	25.8	26.4	18	24	26.9	1.29	B
*80HP	25.4	1"	15.75	15.88	11.1	8.03	32.7	33.9	24	52	60.3	2.5	B

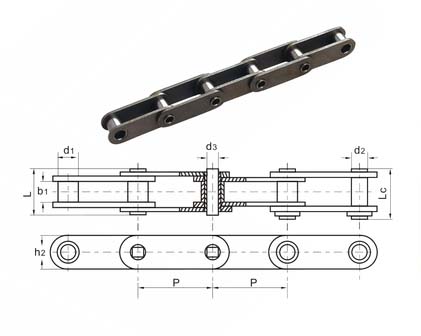

ANSI Standard double pitch hollow pin chain(bush type)

DIN ISO Chain No.	Pitch		d1 mm	b1 mm	h2 max mm	d2 mm	d3 mm	t mm	L mm	U.T.S KN	A.T.S KN	q ≈ kg/m
DIN ISO Chain No.	mm	inch
C2040HP	25.4	1"	7.92	7.85	12	5.63	4	1.52	16.6	6.8	8.16	0.46
C2050HP	31.75	1"1/4	10.16	9.4	15	7.06	5.13	2	20.5	10.6	12.7	0.76
C2060HP	38.1	1"1/2	11.91	12.57	18	8.33	5.97	2.4	25.3	16.1	19.32	1.08
C2080HP	50.8	2"	15.88	15.75	23.6	11.11	8.07	3.2	32.7	26.8	32.16	1.91

ANSI Standard double pitch hollow pin chain(roller type)

DIN ISO Chain No.	Pitch		d1 mm	b1 mm	h2 max mm	d2 mm	d3 mm	t mm	L mm	U.T.S KN	A.T.S KN	q ≈ kg/m
DIN ISO Chain No.	mm	inch
C2042HP	25.4	1"	15.88	7.85	12	5.63	4	1.52	16.6	6.8	8.16	0.8
C2052HP	31.75	1"1/4	19.05	9.4	15	7.06	5.13	2	20.5	10.6	12.72	1.21
C2062HP	38.1	1"1/2	22.23	12.57	18	8.33	5.97	2.4	25.3	16.1	19.32	1.75
C2082HP	50.8	2"	28.58	15.75	23.6	11.11	8.07	3.2	32.7	26.8	32.16	2.93

Packing Delivery Shipping

Packaging Details:

Packing: a hollow pin chain + a poly bag + individual box + wooden case

Port: shanghai ,ningbo

Delivery Details:

Usually, we pack conveyer chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.

Recommend Products

Our Service

1. UCER chain supply OEM/ODM service.

2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
