Standard Tobacco Bucket Elevator Conveyor Chain

Ask Lasest Price
Brand Name :	UCER
Model Number :	P series
Certification :	ISO9001
Price :	$10.00 - $70.00/ Meter
Payment Terms :	L/C, T/T, D/P, CAD
Supply Ability :	10000 Meters per Month
Delivery Time :	45 work days

Add to Cart

Product Details
Company Profile

Standard Tobacco Bucket Elevator Conveyor Chain

Conveyor Chain For Tobacco Factory / Tobacco Machine Chain / Tobacco Conveyor Chain Bucket Elevator Conveyor Chain

Quick Details

Place of Origin:Zhejiang, China

Brand Name:UCER

Model Number:P76.2F30

Structure:Roller Chain

Function:Conveyor Chain

Standard or Nonstandard:Standard

conveyor chains name:bucket elevator conveyor chains

conveyor chain type:conveyor chain with attchment

OEM or not:Could OEM size

heat treatment:all the chain parts undergo heat treatment

Color:black & gray

conveyor chain pitch:76.2 mm

roller &pin material:40Cr

chain plate material:45#

packaging:standard shipping package

size&capacity:pls reference to the form

Specification

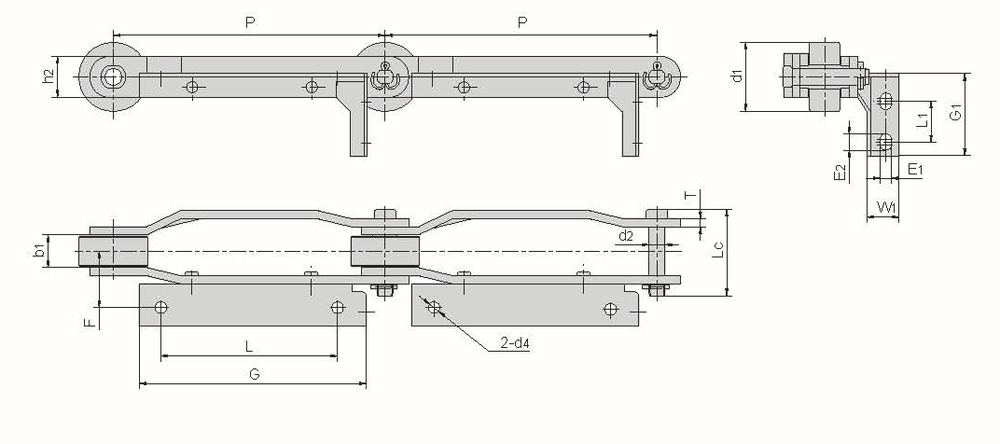

Chain NO.	G	L	F	G1	L1	W1	E1	E2	d4
Chain NO.	mm
P200F74	167	130	41.5	60	30	23	8	12	8
P203.2F2	170	127	39	62	27	24	6.8	10.8	6.5

Chain NO.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length	Plate depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	Lc max	h2 max	T max	Q min	Q0	q
	mm							kN/bf	KN	kg/m
P200F74	200	50	24	11.9	62	30	6	100/22480	110	6.1
P203.2F2	203.2	50.5	24	11	64.6	32	6	120/26977	130	6.2

Chain NO.	G	F	W	h4	d4
P100F74	40	55	73	8	12

Chain NO.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length	Plate depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	Lc max	h2 max	T max	Q min	Q0	q
	mm							kN/bf	KN	kg/m
P100F74	100	60	34	18	69	45	6.0/5.0	140/31470	150	13.8

Chain NO.	G	F	W	h4	d4
P200F33	90	79	136	21.5	14

Chain NO.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length	Pin length	Plate depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	T max	Q min	Q0	q
	mm								kN/bf	KN	kg/m
P200F33	200	100	48	30	107	112	80	12	648/145670	680	37.8

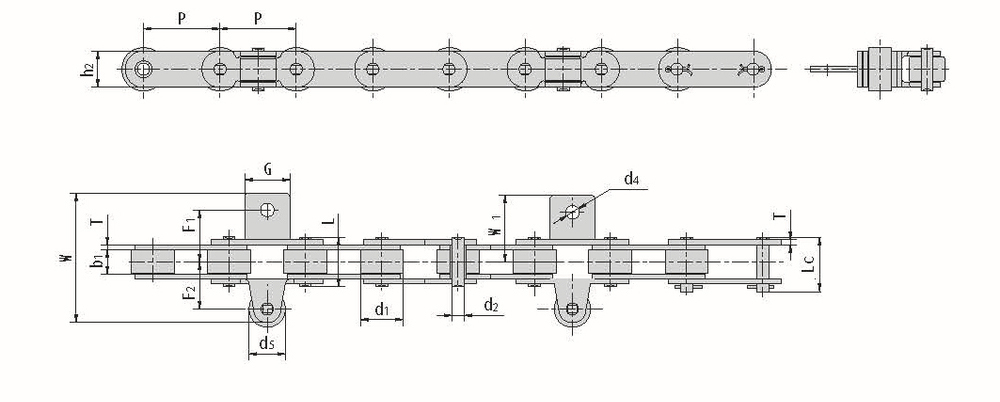

Chain NO.	G	F1	F2	W1	W	d4	d5
Chain NO.	mm
C2082F35	30	33	32	45.7	86.7	8.8	24
C2082HF70	30	34	32	44	85	8.6	24

Chain NO.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length	Pin length	Plate depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	T max	Q min	Q0	q
	mm								kN/bf	KN	kg/m
C2082F35	50.8	28.58	15.75	7.92	32.7	36.5	24	3.25	55.6/12500	60	3.37
C2082HF70	50.8	28..58	15.75	7.92	36.2	38.9	24	4	55.6/12500	60	3.31

Chain NO.	G	L	F	W	h4	d4
P76.2F30	25	31.8	44.5	89.8	9	9.7

Chain NO.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length	Plate depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	Lc max	h2 max	T max	Q min	Q0	q
	mm							kN/bf	KN	kg/m
P76.2F30	76.2	38	24	11	55	28.7	5	75/16860	80	5.67

Packing Delivery Shipping

Packaging Details:Packing: a conveyor chain + a poly bag + individual box + wooden case

Port:shanghai ,ningbo

Delivery Details:

Usually, we pack escalator step chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.

Recommend Products

Our Service

1. UCER chain supply OEM/ODM service.

2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
