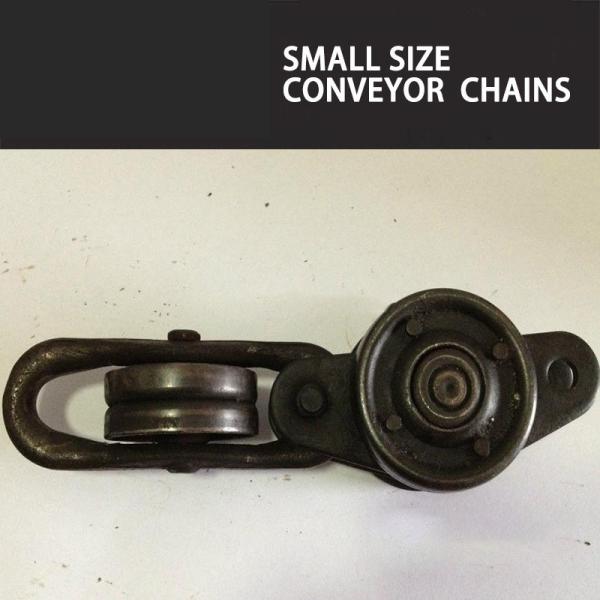

Hanging Conveyor Chain (UH-5075 Series) Spray Coating Line Trolley
Steel Driving Overhead Conveyor Chain
Quick Detail
Applicable Industries:Machinery Repair Shops, Food & Beverage
Factory, Restaurant, Home Use, Food Shop, Printing Shops
Standard or Nonstandard:Nonstandard
Type:hanging conveyor chain
Material:ALLOY, Carbon steel
Tensile Strength:20-50% Higher
Place of Origin:Zhejiang, China
Brand Name:UCER
Load Capacity:5 tones
chain's weight:4.2-6.58KG
Chain's catastrophic pull force:5500KG
Chain's allowable pull force:3500KG
Working temprature:<=250 ℃
Moving Speed:0-12meter/min
usage:workshops continual conveying
Suspension Spacing:150+(150*N) mm
Dimension(L*W*H):152*52*75mm
Specification
| ODEL ITEM | UH-5075-S Standard chain | UH-5075-HH Heavy-duty chain
| UH-5075-HV Heavy-duty chain | UH-5075-HA Heavy-duty chain |
Suspension Spacing (mm) | 150+(150× N) | 150+(150 × N) | 150+(150 × N) | 150+(150 × N) |
Chain's Weight (kg/m) | 4.2 | 4.58 | 4.83 | 5.3 |
Single-span Weight (≤kg) | 35 | 40 | 45 | 50 |
Chain's Allowed Pull Force (≤kgf) | 3000 | 3000 | 3000 | 3000 |
Chain's Catastrophic Pull Force (≥kgf) | 5500 | 5500 | 5500 | 5500 |
Working temperature (≤°C) | 250 | 300 | 300 | 400 |
| Applicable Equipment | General conditions | Large bending; High temperature; | High temperature; Heavy work piece; Frequently lifted; | High temperature; Heavy work piece; Complicated route; |
| Material | 16# Medium-carbon steel, Steel A3 |
| Remark: The above technical data is for our usual over head
conveyor chain: UH-5S, UH-5HH, VH-5HA type. We can customize design
and manufacture the products based customers particular
requirements |
Packing Delivery Shipping
Packaging Details:
Packing: The chain conveyor will be packed in standard export
carton, like fiber bag, also can be packed as your requirement.
Port: shanghai ,ningbo
Delivery Details:
Usually, we pack conveyer chain in polybag and box. then put the
box in the creat. we offer yellow or white box for free, which
marked length and size only, customer also may offer his box sample
to us. our crate dimension: 100×75×75cm(800Kg could be packed)or
105×95×75cm(1000Kg could be packed); Usually 20' container could
pack about 20-25 ton, but it depend on the requirement of the
customs of every country. Packed chain on the pallet directly also
optional.
