    M Series High Hardness Heavy Duty Conveyor Chain M28 M40 M56

    Ask Lasest Price
    Brand Name : UCER
    Model Number : M series
    Certification : ISO9001
    Price : $10.00 - $50.00/ Meter
    Payment Terms : L/C, T/T, D/P, CAD
    Supply Ability : 10000 Meters per Month
    Delivery Time : 45 work days
    • Product Details
    • Company Profile

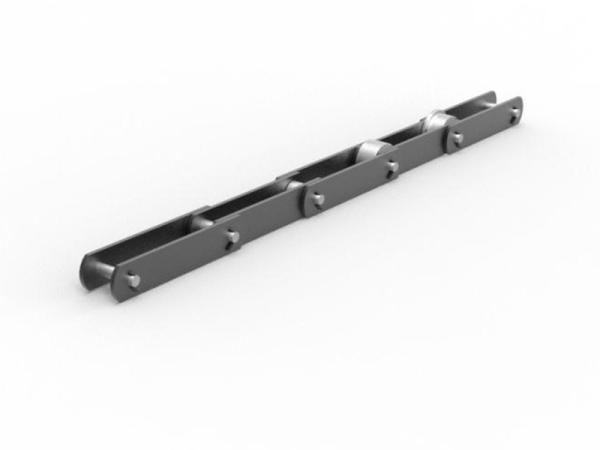

    M Series High Hardness Heavy Duty Conveyor Chain M28 M40 M56

    Chain Scraper Conveyor Carbon Steel Conveyor Chain


    Quick Details


    Finish:Black

    Place of Origin:Zhejiang, China

    Brand Name:UCER

    Model Number:M series

    Structure:Roller Chain

    Function:Conveyor Chain

    Standard or Nonstandard:Standard

    chain name:M series conveyor roller chain

    conveyor chain type:M series

    OEM or not:Could OEM size

    heat treatment:all the chain parts undergo heat treatment

    Color:black & gray

    roller type:F flanged rollers type, big roller, small roller

    chain plate material:45#

    chain roller material:40Cr

    pin marerial:40Cr

    size&capacity:pls reference to the form

    Supply Ability:10000 Meter/Meters per Month


    Specification

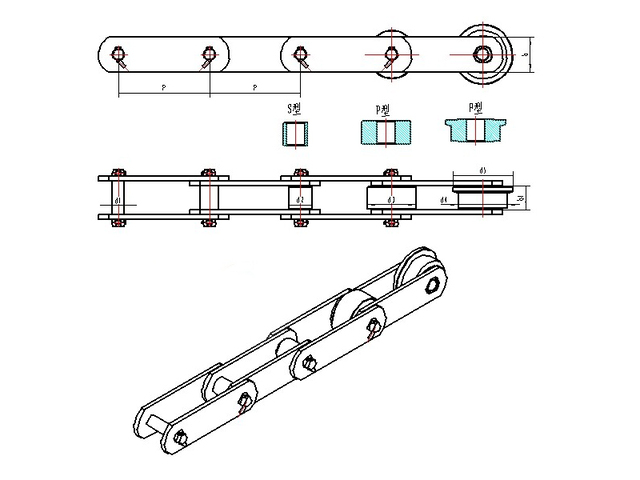

    Chain NO.Pitch PInner link inner width b1Pin diameter d1Plate height hS Roller diameter d2P Roller diameter d3F Roller diameter d4/d5
    mm
    M2050/63/80/125/1601561912.52525/30
    M2863/80/100/125/160/20017721153030/40
    M4063/80/100/125/160/200/250198.526183636/45
    M5680/100/125/160/200/250231031214242/55
    M8080/100/125/160/200/250/315271236255050/65
    M112100/125/160/200/250/315/400311541306060/75
    M160125/160/200/250/315/400/500361851367070/90
    M224160/200/250/315/400/500/630422162428585/105
    M315200/250/315/400/500/63047257250100100/125
    M450200/250/315/400/500/630/80055308560120120/150
    M630250/315/400/500/630/800/1000653610570140140/175
    M900315/400/500/630/800/1000764412385170170/210


    Packing Delivery Shipping


    Packaging Details:Packing: a M series conveyor chain + a poly bag + individual box + wooden case

    Port:shanghai ,ningbo



    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


    Recommend Products



    Our Service

    1. UCER chain supply OEM/ODM service.

    2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
