High Tensile Strength FV40 Bush Roller Chain With FV Attachments

Ask Lasest Price
Brand Name :	UCER
Model Number :	FV series
Certification :	ISO9001
Price :	$10.00 - $70.00/ Meter
Payment Terms :	L/C, T/T, D/P, CAD
Supply Ability :	10000 Meters per Month
Delivery Time :	45 work days

Add to Cart

Product Details
Company Profile

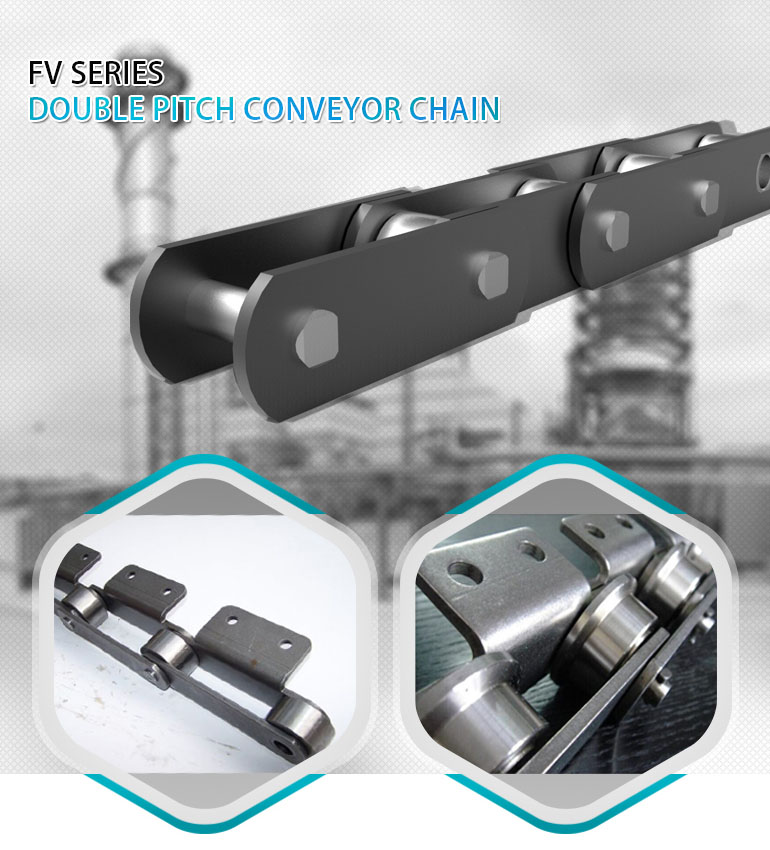

High Tensile Strength FV40 Bush Roller Chain With FV Attachments

FV40 Manufacturing Large Size FV Series Conveyor Chain With Attachment Heavy Duty Conveyor Chains

Quick Details

Applicable Industries:Garment Shops, Restaurant, Food Shop, Energy & Mining

Standard or Nonstandard:Standard

Type:Roller Chain

Material:ALLOY

Tensile Strength:High Tensile Strength

Place of Origin:Zhejiang, China

Brand Name:UCER

Product name:FV type

heat treatment:with

Application:industry ,cement

Supply Ability:10000 Meter/Meters per Month

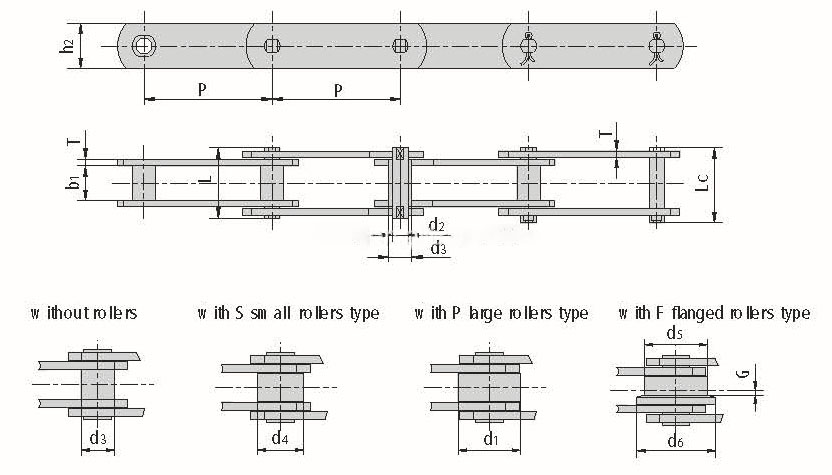

Specification

Chain NO.	Pitch							Roller dimension					Bush diameter
	P							d1 max	d4 max	d5 max	d6 max	G	d3max
	mm
FV40	50	63	80	100	125	-	-	32	20	40	50	4	15
FV63	50	63	80	100	125	160	-	40	26	52	63	5	18
FV90	63	80	100	125	160	200	250	48	30	63	78	6.5	20
FV112	80	100	125	160	200	250	-	55	32	72	90	7.5	22
FV140	63	100	125	160	200	250	-	60	36	80	100	9	26
FV180	100	125	160	200	250	315	-	70	42	100	125	13	30
FV250	125	160	200	250	315	400	-	80	50	125	155	15	36
FV315	160	200	200	315	400	-	-	90	60	140	175	18	42

Chain NO.	Width between inner plates	Pin diameter	Pin Length		Plate depth	Plate thickness	Ultimte tensile strength
	b1 min	d2 max	L min	Lc max	h2 max	T max	Q min	※Q min
	mm						kN/bf	kN/bf
FV40	18	10	36	39	25	3	40/9091	47/10681
FV63	22	12	45	48.5	30	4	63/14317	75/17045
FV90	25	14	53	56.5	35	5	90/20453	115/26136
FV112	30	16	62	66	40	6	112/25452	170/38636
FV140	35	18	67	71.5	45	6	140/31815	180/40908
FV180	45	20	86	92	50	8	180/40908	250/56817
FV250	55	26	91	103.5	60	8	250/56817	300/68181
FV315	65	30	113	126.5	70	10	315/71591	480/109089

Chain NO.	Pitch P	Roller diameter d1max	Width between inner plates b1min	Pin diameter d2max	Pin length Lmax	Pin length Lc	Ultimte tensile strength Qmin	Average tensile strength Q0	Weight perstep q
Chain NO.	mm						kN/bf	kN	kg
FV40A2.02-P-40	40	32	18	10	36	40	40/8892	44	4.98
FV90A2F1-P-85	85	50	25	14	52	56.5	90/20250	100	10.15
FV90A2F1-P-100	100	50	25	14	52	56.5	90/20250	100	8.74
FV112F1A1-P-100	100	55	30	16	71	76.5	180/40492	200	14.3
FV112F1A1-P-80	80	55	30	16	71	76.5	180/40492	200	16.6

Chain NO.	P	L1	G	F	W	h4	h2	d4	T
Chain NO.	mm
FV40A2.02-P-40	40	17	30	60	90	20	25	6.4	3
FV90A2F1-P-85	85	40	60	80	109.2	40	35	9.5	5
FV90A2F1-P-100	100	40	60	80	109.2	40	35	9.5	5
FV112F1A1-P-100	100	△	50	120	164	50	40	15	8
FV112F1A1-P-80	80	△	50	120	164	50	40	15	8

△ Attanchments with hole

Chain NO.	Pitch	Roller diameter			Pin diameter	Pin length		Plate depth	Plate thickness	Ultimte tensile strength	Weight permeter
	P	d1 max	d3 max	d4 max	d2 max	L min	Lc min	h2 max	t/T max	Qmin	q
	mm									kN/bf	kg/m
FV40F3-P-63	63	32	-	-	10	38.1	41.5	45	4	80/17985	2.13
FV90F9-B-100	100	-	20	-	14	60.2	64.6	35	6.0/8.0	90/20453	6
FV90F10-B-100	100	-	20	-	14	60.2	64.6	40	6.0/8.0	90/20453	6.83
FV140-PF1-125	125	65	-	-	18	67	71.5	45	6.0	140/31473	12.76

Packing Delivery Shipping

Packaging Details:Packing: a conveyor chain + a poly bag + individual box + wooden case

Port:shanghai ,ningbo
