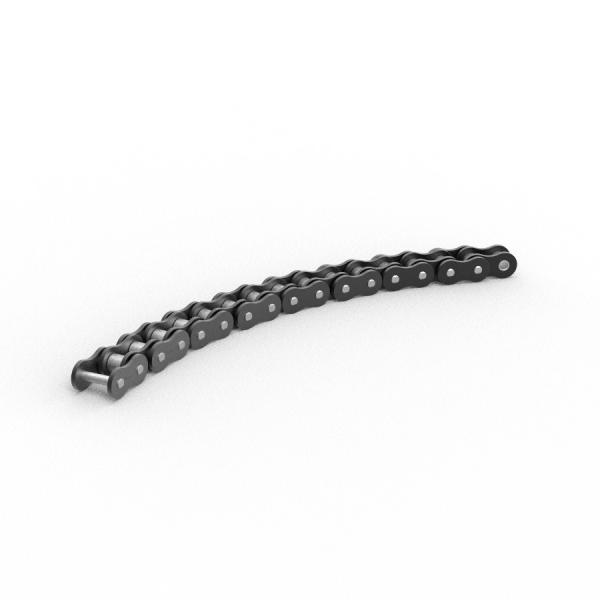

    ISO9001 BSB SB Double Flex Chain Alloy Steel Transmission Side Bow Chain

    Ask Lasest Price
    Brand Name : UCER
    Model Number : BSB SB
    Certification : ISO9001
    Price : $1.00 - $50.00/ Meter
    Payment Terms : L/C, T/T, , D/P, CAD
    Supply Ability : 10000 Meters per Month
    Delivery Time : 35 work days
    • Product Details
    • Company Profile

    ISO9001 BSB SB Double Flex Chain Alloy Steel Transmission Side Bow Chain

    Double Flex Chain Alloy Steel Transmission Side Bow Chain Transmission Drive Chains


    Quick Detail


    Finish: Black

    Place of Origin: Zhejiang, China

    Brand Name: UCER

    Model Number: BSB SB

    Structure: Roller Chain

    Function: Conveyor Chain

    Standard or Nonstandard: Standard

    Roller chain name: alloy steel transmission side bow chain

    Conveyor chain type: side bow chain

    OEM service: Could OEM size

    Heat treatment: all the chain parts undergo heat treatment

    Color: black & gray

    Pitch: 12.7-25.4 mm

    Production maker: China manufacturer

    Side bow chan quality: good quality

    Size&capacity: pls reference to the form

    Supply Ability: 10000 Meter/Meters per Month

    Specifications


    DIN ISO Chain No.Pitchd1 maxb1 minhd2b2R minU.T.SA.T.Sq ≈ kg/m
    mminchmmKNKNkg/m
    08BSB12.71/2"8.517.7511.83.9417.431511.213.440.71
    10BSB15.8755/8"10.169.6514.64.3719.740615180.73
    40SB12.71/2"7.927.8511.53.4516.6315910.80.57
    50SB45.8755/8"10.169.4154.372140615180.98
    60SB19.053/4"11.9112.5717.85.0825.95082226.881.47
    80SB25.41"15.8815.7523.57.1934.171140.949.082.4

    Packing Delivery Shipping



    Packaging details : a side bow chain + a poly bag + individual box + wooden case

    Port: shanghai ,ningbo
    Pin Bush Roller Plate Engineer Design Chain Parts Machine Parts 4

    Delivery Details:

    Usually, we pack car packing chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.
    Recommend Products
    Pin Bush Roller Plate Engineer Design Chain Parts Machine Parts 5

    Our Service

    1. UCER chain supply OEM/ODM service.

    2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
