Carbon Steel Agricultural Chain Transmission Drive Chains
CA550 CA555 CA545 CA557 CA620 C2060H
Quick Details
Finish: Black, Plain
Place of Origin: Zhejiang, China
Brand Name: UCER
Model Number: LH BL LL FB
Structure: Roller Chain
Function: Transmission Chain
Standard or Nonstandard: Standard
Roller chain name: Chain manufacturer steel leaf chains
Conveyor chain type: chain with attchments
OEM service: accept
Heat treatment: all the chain parts undergo heat treatment
Color: black & gray
Leaf chain price: best price
Production maker: China manufacturer
Material: alloy steel or stainless steel
Size&capacity: pls reference to the form
Specification

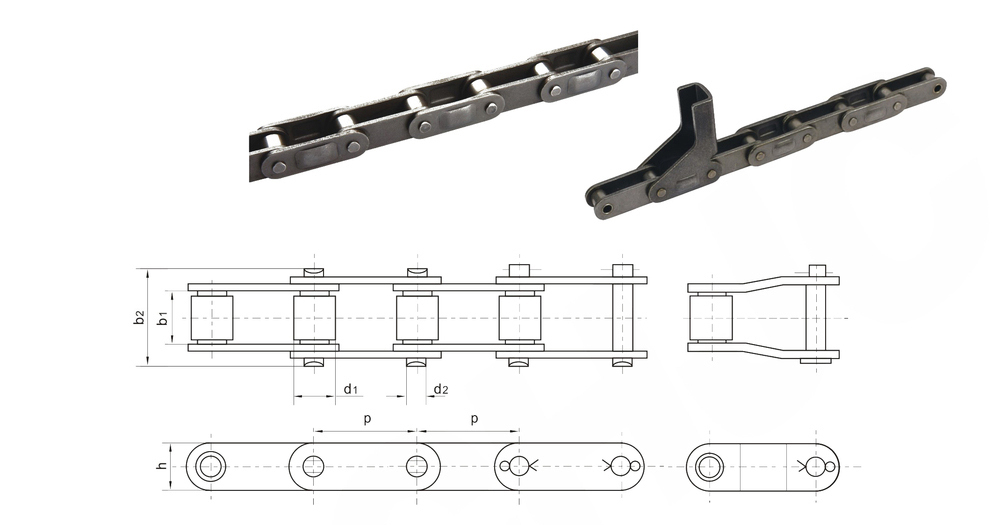

| DIN ISO Chain No. | Pitch | d1 max | b1 min | h max | d2 max | b2 max | U.T.S | A.T.S | q ≈ kg/m |
| mm | mm | KN | KN | kg/m |
| CA550 | 41.4 | 16.7 | 19.81 | 19.05 | 7.16 | 34.5 | 39.1 | 46.92 | 1.926 |
| CA550/45 | 41.4 | 15.24 | 19.81 | 19.05 | 7.16 | 35.5 | 39.1 | 46.92 | 1.777 |
| CA550/55 | 41.4 | 17.78 | 19.81 | 19.05 | 7.16 | 35.5 | 39.1 | 46.92 | 2.023 |
| CA555 | 41.4 | 16.7 | 12.7 | 19.05 | 7.16 | 29.3 | 56 | 67.2 | 2.01 |
| CA557 | 41.4 | 17.78 | 19.81 | 23.1 | 7.92 | 37.1 | 55.6 | 66.72 | 2.623 |
| CA620 | 42.01 | 17.91 | 24.51 | 19.05 | 7.16 | 41.5 | 9.1 | 46.92 | 2.44 |
| C2060H | 38.1 | 11.91 | 12.75 | 18 | 5.94 | 28.6 | 31.1 | 37.32 | 1.518 |
| DIN ISO Chain No. | Pitch | d1 max | b1 min | h max | d2 max | b2 max | U.T.S | A.T.S | q ≈ kg/m |
| mm | mm | KN | KN | kg/m |
| CA395 | 38.4 | 10.38 | 19 | 17.2 | 6.92 | 33.4 | 36 | 43.2 | 1.3 |
Packing Delivery Shipping
Packaging details : a leaf chain + a poly bag + individual box +
wooden case
Delivery Details:
Usually, we pack conveyer chain in polybag and box. then put the
box in the creat. we offer yellow or white box for free, which
marked length and size only, customer also may offer his box sample
to us. our crate dimension: 100×75×75cm(800Kg could be packed)or
105×95×75cm(1000Kg could be packed); Usually 20' container could
pack about 20-25 ton, but it depend on the requirement of the
customs of every country. Packed chain on the pallet directly also
optional.
