OEM 80-1 80-2 80-3 Oil Field Chains For Petroleum Equipment

Ask Lasest Price
Brand Name :	UCER
Model Number :	80-1 80-2 80-3 100 120 140 160 200 240
Certification :	ISO9001
Price :	$8.00 - $99.00/ Meter
Payment Terms :	L/C, T/T, , D/P, CAD
Supply Ability :	10000 Meters per Month
Delivery Time :	45 work days

Add to Cart

Product Details
Company Profile

OEM 80-1 80-2 80-3 Oil Field Chains For Petroleum Equipment

Standard Chain For Petroleum Equipment Oil Field Chains Transmission Drive Chains

80-1 80-2 80-3 100 120 140 160 200 240

Quick Detail

Standard or Nonstandard: Standard

Type: Roller Chain, oil field chains

Material: ALLOY

Tensile Strength: high tensile strength

Place of Origin: Zhejiang, China

Brand Name: UCER

Roller chain name: standard chain for petroleum equipment oil field chains

OEM service: accept

Heat treatment: all the chain parts undergo heat treatment

Color: nature

Transmission chains pitch: 25.40-76.2 mm

Driving chain roller diameter: 15.88-47.63 mm

Production maker: china manufacturer

Specifications :

Technique Treatment
1	Shot Peening	8	Quenching
2	Bluing	9	Tempering
3	Phosphating	10	Oiling
4	Nickel-plated	11	Greasing
5	Zincing	12	Special color
6	Heat Treatment	13	Stain proofing
7	Carburzing	14	Pre-stretched and anti-fatigue

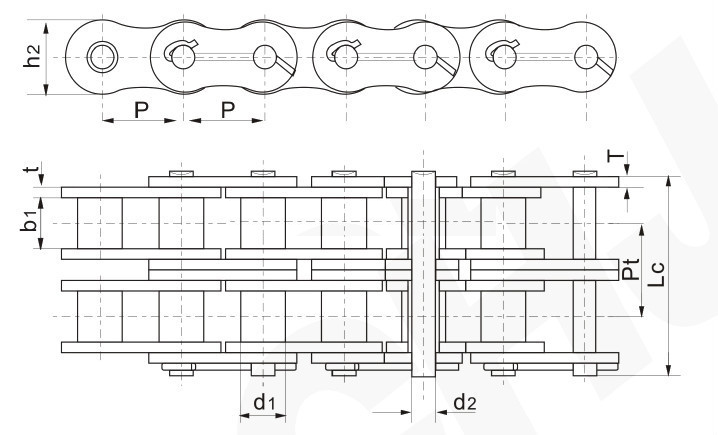

DIN ISO Chain No.	ANSI Chain No.	Pitch		d1 max mm	b2 max mm	d2 max mm	h2 max mm	t/T	Pt mm	Lc max mm	U.T.S KN	A.T.S KN	q ≈ kg/m
		mm	inch
80-1	16A-1	25.4	1"	15.88	15.75	7.92	24.1	3.25	-	37.55	55.6	66.72	2.6
80-2	16A-2								29.29	66.8	111.2	133.44	7.8
80-3	16A-3								29.29	96.1	166.8	200.16	7.89
100-1	20A-1	31.75	1"1/4	19.05	18.9	9.53	30.1	4	-	44.3	86.84	104.2	3.91
100-2	20A-2								35.76	80.5	173.88	208.65	7.8
100-3	20A-3								35.76	116.3	260.52	312.62	11.77
120-1	24A-1	38.1	1"1/2	22.23	25.22	11.1	36.1	4.8	-	54.4	125.1	150.12	5.62
120-2	24A-2								45.44	99.7	250.2	300.12	11.7
120-3	24A-3								45.44	145.2	375.3	450.36	17.53
140-1	28A-1	44.45	1"3/4	25.4	25.22	12.7	42.1	5.6	-	59	170.27	204.32	7.5
140-2	28A-2								48.87	107.8	340.54	408.64	15.14
140-3	28A-3								48.87	156.8	510.81	612.97	22.2
160-1	32A-1	50.8	2"	28.58	31.55	14.27	48.1	6.4	-	69.6	222.4	266.88	10.1
160-2	32A-2								58.55	127.5	444.8	533.76	20.14
160-3	32A-3								58.55	186.6	667.2	800.64	30.05
200-1	40A-1	63.5	2"1/2	39.68	37.85	19.85	60	8	-	87.2	347.41	416.89	16.15
200-2	40A-2								71.55	158.8	695	834	32.24
200-3	40A-3								71.55	230.4	1042.5	1251	49.03
240-1	48A-1	76.2	3"	47.63	47.35	23.81	72.39	9.5	-	103	500.4	600.48	24.93
240-2	48A-2								87.83	190.8	1000.8	1200.93	49.51
240-3	48A-3								87.83	278.6	1501.2	1801.44	74.16

Packing Delivery Shipping

Packaging details : a chain + a poly bag + individual box + wooden case or as your request

Port: shanghai ,ningbo
Pin Bush Roller Plate Engineer Design Chain Parts Machine Parts 4

Delivery Details:

Usually, we pack motorcycle chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.

Recommend Products

Our Service

1. UCER chain supply OEM/ODM service.

2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.

Welded Plate Paver Load Scraper Conveyor Chain 6
