Duplex Roller Driving Chain Coupling 4012 4014 4016

Ask Lasest Price
Brand Name :	UCER
Model Number :	4012 4014 4016
Certification :	ISO9001
Price :	$2.00 - $99.00/ Meter
Payment Terms :	L/C, T/T, D/P, CAD
Supply Ability :	10000 Meters per Month
Delivery Time :	45 work days

Add to Cart

Product Details
Company Profile

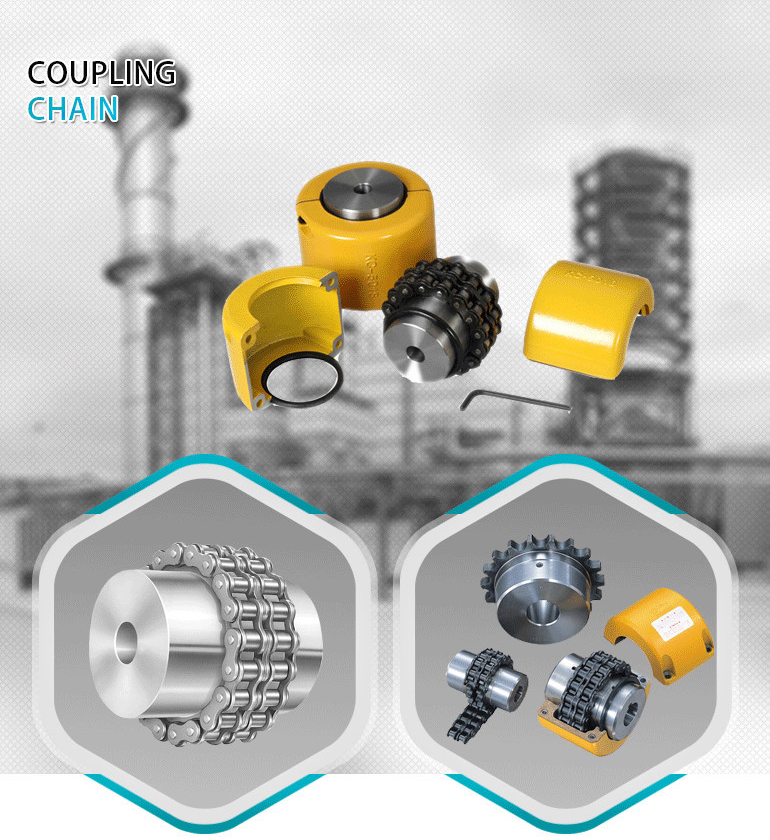

Duplex Roller Driving Chain Coupling 4012 4014 4016

Duplex Roller Driving Chain Coupling Transmission Drive Chains

Quick Details

Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Food & Beverage Shops

Standard or Nonstandard: Standard

Type: Roller Chain

Material: ALLOY

Tensile Strength: high tensile strength

Place of Origin: Zhejiang, China

Brand Name: UCER

coupling chain name: duplex roller driving chain coupling chains

coupling chain Type: duplex Driving Chain

OEM service: accept

heat treatment: all the chain parts undergo heat treatment

Color: black & gray & colourful

Coupling chains pitch: 12.7 - 38.1 mm

Coupling chains roller diameter: 7.95 - 22.23 mm

Production maker: china manufacturer

Coupling chain field of use: Shaft Couplings

Size&capacity: pls reference to the form

ANSI Chain No. UCER	Pitch	b1 min mm	d1 max mm	d2 max mm	L max mm	Lc max mm	h2 max mm	T max mm	Pt mm	U.T.S KN	A.T.S KN	q ≈ kg/m
4012	12.7	7.85	7.95	3.96	31	32.2	12	1.5	14.38	28.2	35.9	0.16
4014	12.7	7.85	7.95	3.96	31	32.2	12	1.5	14.38	28.2	35.9	0.19
4016	12.7	7.85	7.95	3.96	31	32.2	12	1.5	14.38	28.2	35.9	0.21
5014	15.875	9.4	10.16	5.08	38.9	40.4	15.09	2.03	18.11	44.4	58.1	0.49
5016	15.875	9.4	10.16	5.08	38.9	40.4	15.09	2.03	18.11	44.4	58.1	0.56
5018	15.875	9.4	10.16	5.08	38.9	40.4	15.09	2.03	18.11	44.4	58.1	0.63
6018	19.05	12.57	11.91	5.94	48.8	50.5	18	2.42	22.78	63.6	82.1	1
6020	19.05	12.57	11.91	5.94	48.8	50.5	18	2.42	22.78	63.6	82.1	1.11
6022	19.05	12.57	11.91	5.94	48.8	50.5	18	2.42	22.78	63.6	82.1	1.22
8018	25.4	15.75	15.88	7.92	62.7	64.3	24	3.25	29.29	113.4	141.8	2.35
8020	25.4	15.75	15.88	7.92	62.7	64.3	24	3.25	29.29	113.4	141.8	2.62
8022	25.4	15.75	15.88	7.92	62.7	64.3	24	3.25	29.29	113.4	141.8	2.88
10022	31.75	18.9	19.05	9.53	76.4	80.5	30	4	35.76	177	219.4	4.95
12018	38.1	25.22	22.23	11.1	95.8	99.7	35.7	4.8	45.44	254	314.9	8.14

Packing Delivery Shipping

Packaging details : a couplings chain + a poly bag + individual box + a wooden case
Pin Bush Roller Plate Engineer Design Chain Parts Machine Parts 4

Delivery Details:

Usually, we pack conveyer chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.
