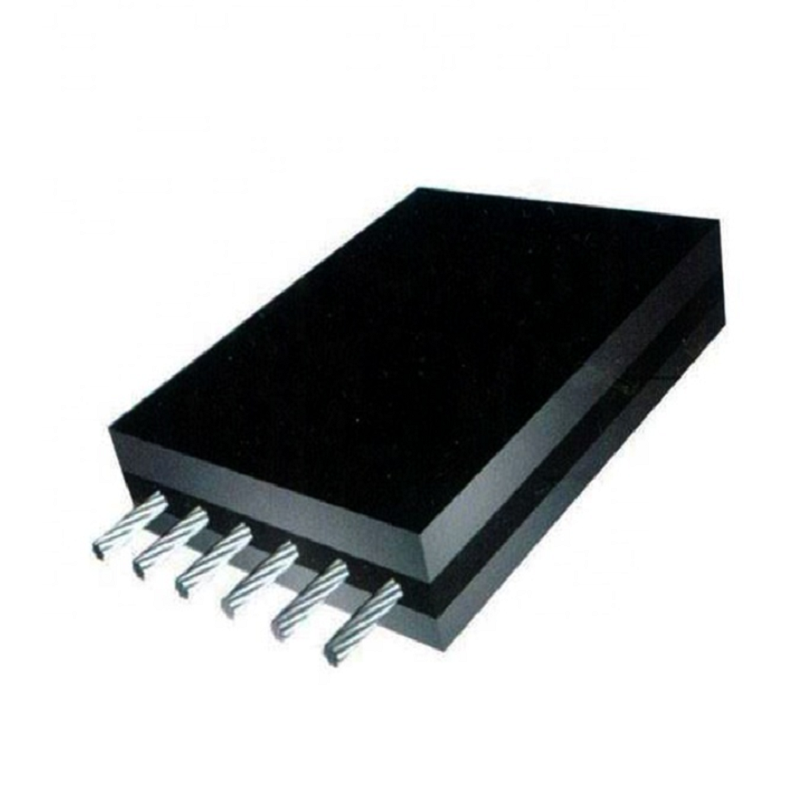

Steel cord conveyor belt ST800 Wire Rope Conveyor Belt

Wire rope conveyor belt is a rubber conveyor belt with steel wire as the skeleton. It has the advantages of high tensile strength, good impact resistance, long life, low elongation, good trough forming, and good flexural resistance. It is suitable for long-distance, long-haul, and high-speed transportation of materials. The product is composed of core rubber, steel wire rope, covering layer and edge rubber.

1. Purpose

Wire rope conveyor belt is suitable for material transportation under tear-proof conditions required by coal mines, mines, ports, electric power, metallurgy, building materials and other industries. It can be used for long-distance, large-span, large-volume and high-speed material transportation.

2. The form of damage

There are many forms of damage to the wire rope conveyor belt, mainly: serious wear on the rubber surface; ripped edges; tearing. Among them, conveyor belt tearing is the most harmful form of damage. It mainly refers to the longitudinal tearing of the conveyor belt caused by the sharp impurities in the conveying material being inserted into the conveyor belt or the steel wire in the conveyor belt is drawn out. Although the tearing of the conveyor belt is an accidental damage, it is very destructive. If it is not controlled in time, it will cause the entire conveyor belt to tear (accidents of tearing the conveyor belt of thousands of meters occur from time to time in the port), which will cause production shutdown , Bringing huge direct and indirect economic losses to the port. Therefore, the protection and detection of the tearing of the conveyor belt have always been paid attention to by the conveyor belt manufacturers and users. At the same time, the relevant national standards also require that the conveyor belt should be installed to prevent longitudinal tearing and tearing detection devices.

<

CDINDUSTRY(INTERNATIONAL).INC.(Hereinafter referred to as CDI) is located in Chongqing Yubei District of southwest of China. The main business involves the equipment supply and after-market outsourcing in the area of Metallurgy, Cement and Oil&Gas field. Also CDI established UCER for providing professional conveyor belt&conveyor chain to customers.

UCER is a professional manufacturer of conveyors belts and conveyor chains integrating product development, research, design, manufacturing, sales and service. The company has passed ISO9001:2009 international quality management system certification. After years of hard work, our partners have spread all over the country, and its products are exported to Europe, America, Asia, Africa, and Australia.

The company’s conveyors belt products mainly include steel wire rope core conveyor belts, steel wire rope hoisting belts, bucket elevator conveyor belts, sidewall conveyor belts, large inclination corrugated sidewall conveyor belts, plain cotton conveyor belts, cotton canvas conveyor belts, nylon conveyor belts, polyester (EP ) Conveyor belt, white rubber conveyor belt, steel cable conveyor belt, steel cable belt, pattern conveyor belt, whole core non-flammable conveyor belt, flame retardant conveyor belt, PU conveyor belt, light conveyor belt, PVC conveyor belt and PVG conveyor belt, etc. As for conveyor chain, we have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.

For a long time, the company has been committed to the promotion of ports, metallurgy, mining, coal, foundry, building materials, food, chemical and other markets, and has won praise and support from users.
