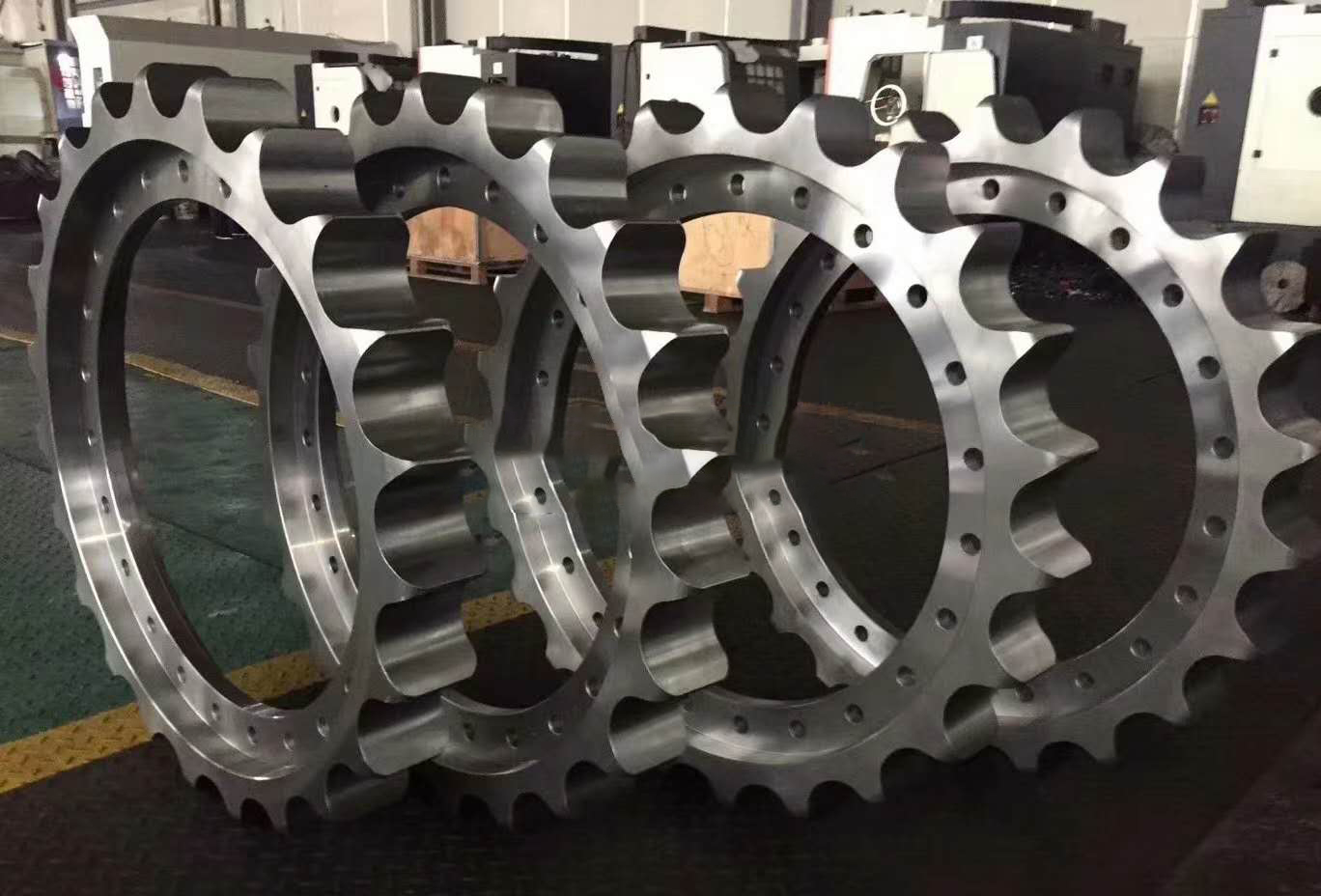

Taper Bushed Sprockets Chain Driven Sprockets

Quick Details

Applicable Industries:Building Material Shops, Energy & Mining

Standard or Nonstandard: Nonstandard

Type: Roller Chain

Material: Iron

Tensile Strength: High Tensile Strength

Place of Origin: Zhejiang, China

Brand Name: UCER

Product name: sprocket

Heat treatment: with

Application: cement

Structure: A

Style: sprocket

Packing: wooden box

Surface Treatment: Heat Treatment

Function: part

Materail: Stainless Steel 304

Supply Ability: 30000 Bag/Bags per Month

Double-Taper Bushed Dimension:in

Teeth No.	Catalog No.	Bush No.	Pitch Dia.Dp	Outside Dia.Do	Max.Bore	Hub		Type	Wt(APP)(Lbs)
						H	d		Rim	Bush
13	D60BTB13H	1215	3.134	3.493	1 1/4	1 1/2	2 1/4	B	1.2	1.6
14	D60BTB14H	1215	3.371	3.736	1 1/4	1 1/2	2 1/2	B	1.6	1.7
15	D60BTB15H	1615	3.607	3.979	1 5/8	1 1/2	2 13/16	B	1.3	1.8
16	D60BTB16H	1615	3.844	4.221	1 5/8	1 1/2	3	B	2.2	2.3
17	D60BTB17H	1615	4.082	4.462	1 5/8	1 1/2	3 1/4	B	2.5	2.8
18	D60ATB18H	2012	4.319	4.704	2	1 1/4		A	3	2.4
19	D60ATB19H	2012	4.557	4.945	2	1 1/4		A	3.5	2.9
20	D60BTB20H	2517	4.794	5.185	2 1/2	1 3/4	3 61/64	B	4	2.9
21	D60BTB21H	2517	5.032	5.426	2 1/2	1 3/4	4 3/16	B	5	3.8
25	D60BTB25H	2517	4.984	6.387	2 1/2	1 3/4	5 5/32	B	7.5	7.4
30	D60BTB30	2517	7.175	7.586	2 1/2	1 3/4	6 11/32	B	13.5	13.3
36	D60CTB36	2517	8.605	9.022	2 1/2	1 3/4	4 1/4	C	17.5	17.4
42	D60CTB42	2517	10.036	10.458	2 1/2	1 3/4	4 1/4	C	25.5	25
45	D60CTB45	2517	10.752	11.176	2 1/2	1 3/4	4 1/4	C	29.5	29.3
52	D60CTB52	2517	12.422	12.849	2 1/2	1 3/4	4 1/4	C	41	40.3
60	D60CTB60	2517	14.33	14.761	2 1/2	1 3/4	4 1/4	C1	32.2	33.5
68	D60CTB68	2517	14.24	16.672	2 1/2	1 3/4	4 1/2	C1	36.5	43.2
76	D60CTB76	3020	18.149	18.583	3	2	5 1/4	C1	42.5	47.8
95	D60CTB95	3020	22.684	23.121	3	2	5 1/4	C1	48.5	69.8

Single-Taper Bushed Dimension:in

Teeth No.	Catalog No.	Bush No.	Pitch Dia.Dp	Outside Dia.Do	Max.Bore	Hub		Type	Wt(APP)(Lbs)
						H	d		Rim	Bush
10	80BTB10H	1215	3.236	3.678	1 1/4	1 1/2	2 3/8 ※	B	1.1	0.8
11	80BTB11H	1215	3.548	4.006	1 1/4	1 1/2	2 15/32 ※	B	1.5	0.8
12	80BTB12H	1615	3.864	4.332	1 5/8	1 1/2	3 ※	B	1.8	1.2
13	80BTB13H	1615	4.179	4.657	1 5/8	1 1/2	3	B	2.3	1.2
14	80BTB14H	1615	4.494	4.982	1 5/8	1 1/2	3 1/4	B	5.5	1.2
15	80BTB15H	1615	4.81	5.305	1 5/8	1 1/2	3 1/4	B	2.7	1.2
16	80BTB16H	2012	5.126	5.627	2	1 1/4	3 9/16	B	2.8	1.7
17	80BTB17H	2012	5.442	5.95	2	1 1/4	3 9/16	B	3.1	1.7
18	80BTB18H	2012	5.759	6.271	2	1 1/4	3 9/16	B	3.6	1.7
19	80BTB19H	2012	6.076	6.593	2	1 1/4	3 9/16	B	4.1	1.7
20	80BTB20H	2517	6.392	6.914	2 1/2	1 3/4	4 1/4	B	5.5	1.7
21	80BTB21H	2517	6.71	7.235	2 1/2	1 3/4	4 1/4	B	6	3.5
22	80BTB22H	2517	7.027	7.555	2 1/2	1 3/4	4 1/4	B	6.5	3.5
23	80BTB23H	2517	7.344	7.875	2 1/2	1 3/4	4 1/4	B	7	3.5
24	80BTB24H	2517	7.661	8.196	2 1/2	1 3/4	4 1/4	B	7.5	3.5
25	80BTB25H	2517	7.979	8.516	2 1/2	1 3/4	4 1/4	B	8.1	3.5
26	80BTB26H	2517	8.296	8.836	2 1/2	1 3/4	4 1/4	B	8.8	3.5
27	80BTB27H	2517	8.614	9.156	2 1/2	1 3/4	4 1/4	B	9	3.5
28	80BTB28H	2517	8.931	9.475	2 1/2	1 3/4	4 1/4	B	9.5	3.5
30	80BTB30H	2517	9.567	10.114	2 1/2	1 3/4	4 1/4	B	11.5	3.5
32	80BTB32	2517	10.202	10.753	2 1/2	1 3/4	4 1/4	B	12	3.5
35	80BTB35	2517	11.156	11.711	2 1/2	1 3/4	4 1/4	B	15.2	3.5
36	80BTB36	2517	11.474	12.03	2 1/2	1 3/4	4 1/4	B	17	3.5
40	80BTB40	2517	12.746	13.306	2 1/2	1 3/4	4 1/4	B	21	3.5
45	80BTB45	2517	14.336	14.9	2 1/2	1 3/4	4 1/4	B	26.5	3.5
48	80BTB48	2517	15.29	15.857	2 1/2	1 3/4	4 1/4	B	29.5	3.5
54	80BTB54	2517	17.198	17.769	2 1/2	1 3/4	4 1/4	B	38.5	3.5
60	80BTB60	2517	19.107	19.681	2 1/2	1 3/4	4 1/4	B	45	3.5
70	80BTB70	3020	22.289	22.867	3	2	5 1/4	B	52.3	6.5
80	80BTB80	3020	25.471	26.052	3	2	5 1/4	B	69.2	6.5

Note:※ Has recessed groove in hub for chain clearance

Packing Delivery Shipping

Packaging details: Neutral Cartons and Pallets for free fumigation or steel tray if there is no special requirments. But is is available to provide colourful package according to your demand.

Port: shanghai ,ningbo

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

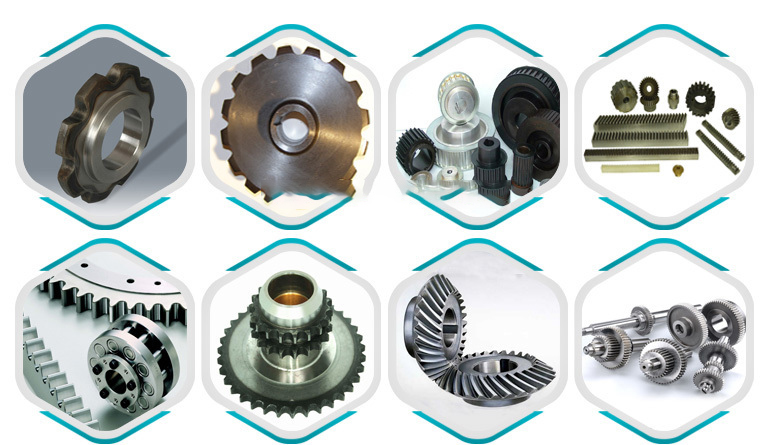

Recommend Products
