Abrasion Resistant Scraper Stacker Reclaimer Chain Large Size

Ask Lasest Price
Brand Name :	UCER
Model Number :	RMC DLS
Certification :	ISO9001
Price :	$10.00 - $70.00/ Meter
Payment Terms :	L/C, T/T, D/P, CAD
Supply Ability :	10000 Meters per Month
Delivery Time :	45 work days

Add to Cart

Product Details
Company Profile

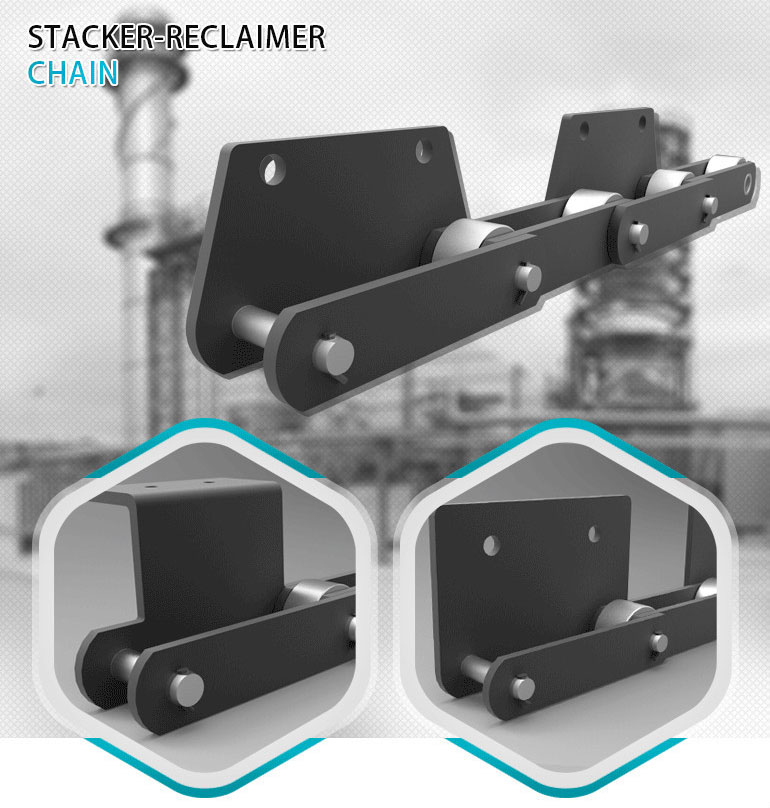

Abrasion Resistant Scraper Stacker Reclaimer Chain Large Size

Heat And Abrasion Resistant Scrapper Stacker-Reclaimer Chain

Quick Details

Finish:Black, Plain

Place of Origin:Zhejiang, China

Brand Name:UCER

Model Number:could OEM

Structure:Roller Chain

Function:Conveyor Chain

Standard or Nonstandard:Standard

conveyor chains name:conveyor chain for bucket-wheel stacker reclaimer

conveyor chain type:large size conveyor chain

OEM or not:Could OEM size

heat treatment:all the chain parts undergo heat treatment

Color:black & gray

surface treatment:shot peening

Specification:Customized

chain plate material:C45

packaging:standard

size&capacity:pls reference to the form

Specification

DIN ISO Chain No.	Pitch mm	b1 mm	d1 max mm	h1 mm	T mm	d2 mm	b2 mm	d4 mm	f mm	h2 mm	L mm	U.T.S KN	A.T.S KN	q ≈ kg/m
RMC15491	101.6	50.4	38.1	44.5	9.5	17.5	108	14.2	134.9	41.4	44.5	290	348	22.524

DIN ISO Chain No.	Pitch mm	b1 mm	d1 max mm	h1 mm	T mm	d2 mm	b2 mm	h mm	k mm	U.T.S KN	A.T.S KN	q ≈ kg/m
RMC15517	78.1	37.8	31.75	38.1	9.5	15.88	93.4	63.55	12.5	266.7	320.04	13.191
RMC15582	101.6	50.4	38.1	44.5	12.7	17.5	121	79.35	16.5	355.6	426.72	57.75
RMC15126	152.4	76.2	69.85	63.5	12.7	25.4	149	120.6	20.6	622.3	746.76	42.98

DIN ISO Chain No.	Pitch		b1 mm	d1 max mm	h1 mm	T mm	d2 mm	b2 mm	d4 mm	f mm	h2 mm	L mm	U.T.S KN	A.T.S KN
	mm	inch
RMC15125	101.6	4"	50.8	41.25	44.5	8	19	101.8	11.9	119.1	38.1	44.5	195.6	234.72

DIN ISO Chain No.	Pitch mm	b1 mm	d1 max mm	h1 mm	T mm	d2 mm	b2 mm	d4 mm	f mm	h2 mm	L mm	U.T.S KN	A.T.S KN
RMC15128	152.4	76.2	69.85	63.5	12.7	25.4	149	20.6	184.2	47.7	63.5	622.3	746.76

Packing Delivery Shipping

Packaging Details:Packing:a conveyor chain + a poly bag + individual box + wooden case

Port:shanghai ,ningbo

Delivery Details:

Usually, we pack escalator step chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.

Recommend Products

Our Service

1. UCER chain supply OEM/ODM service.

2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
